The VSB Range of poultry house auto door openers.

Most countries will allows these as personal imports so you get the saving of buying "Duty Free" shipped direct from the UK

Fitting an automatic pophole opener is simple and only takes a few minutes - Lift the door to the open position, attach the cord to the door, screw the VSB unit to the front of the hen house and fit the batteries. Done!

VSBb is the basic automatic poultry door opener supplied with batteries and battery holder. With a suitable door the battery life can be up to 4 years. This works according to a light sensor or the optional timer

VSBbi As the VSBb but with the sensor fitted on an external cable so that the main unit can be position inside the hen house. Great where you'd like to hide the mechanism.This works according to a light sensor or the optional timer

Timer - Connecting a timer to a VSBb or VSBbi will enable you to set the actual opening time with the light sensor controlling the closing or to control both opening and closing. This is especially useful for free range birds as it enables them to be confined until after any night time predators have gone home.

Doors - A choice of 3 light weight doors 22x33cm for hens, 30x40 for ducks and 33x55 for geese.

Pulleys - To open more than one door or increase the lifting capacity of the VSB unit

.Figures in US$ are approximate. conversion. Transaction is in Sterling

VSBb / VSBbi
Timer
Pulleys
Door

Airmail shipping is included. This takes around 2 weeks. Express shipping takes 3-5 days. Duck and goose doors are sent by express only, this is included in the standard price - no need to select express shipping.

Shipping

Additional Doors Quantity:


Mounting Examples

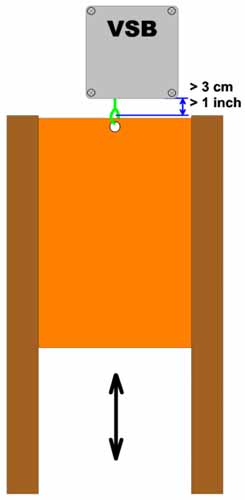

Standard Installation

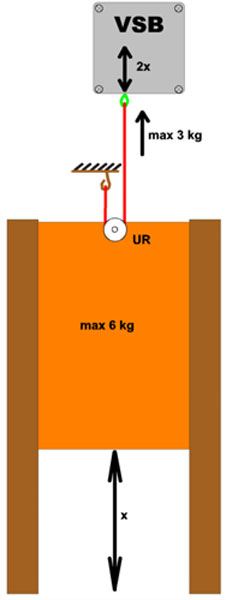

Installation where door is between 3 & 6 KG

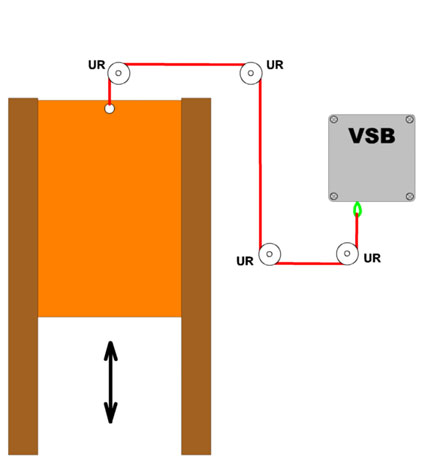

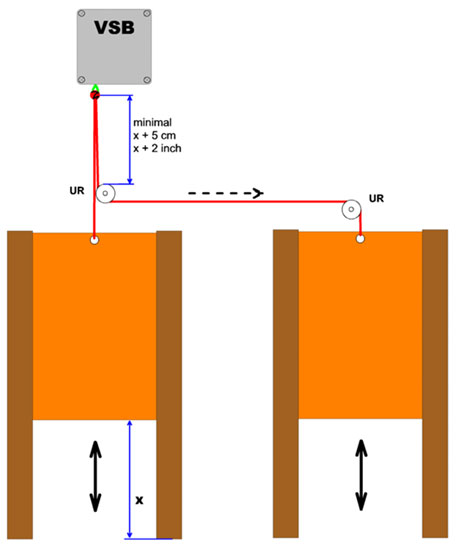

Installation where vertical height is limited Installation to open doors with one VSB unit

And now the technical bit!

This automatic control device can be used wherever a vertical sliding gate is to be opened and closed in response to light conditions at dawn and dusk, for instance on a henhouse etc.
The sensitivity of the system is adjustable. Using our timers, it is possible to open and to close the sliding gate according to the time setting or to open it according to the time setting and to close it in response to light conditions at dusk

The VSB unit is suitable for outside installation, is weatherproof, can readily be exposed to sunlight and is insensitive to lightning stroke.
Mounting is very easy: Open the sliding gate, fasten it at the VSB unit and insert the batteries.

The lower stop will be automatically "chosen" by the sliding gate, i.e. when the latter reaches the lower position.
The maximum stroke length of 50 cm can be increased, upon request. The system makes it also possible to operate several sliding gates via idlers.

Power supply: 4 Mignon alkaline LR 6 (AA) batteries.
In a long-time reliability test motor defects were found to occur only after 18,482 opening and closing operations (i.e. after a service life of about 50 years).

electronic doorkeeper


Latest Modifications:
- Compact geared motor with steel gears ensuring extremely long life;
- Battery life now 3 to 4 years with an HS sliding gate or 2 years with a 1,5-kg sliding gate
   featuring a 50-cm-lift;
- Operates considerably quieter now;
- Thanks to 40-kg breaking strength, the rope can hardly break any more.

Several thousand VSB Electronic Doorkeepers have proved to be effective in Europe, America, Africa and Australia since 1983 (from Oslo to Lagos and from Sydney  to Buenos Aires, L.A. and Montreal).
This latest generation has been produced using SMT-Technology. The electronic components are fixed to the underside of the PCB (printed circuit board) and are optimally protected with a special varnish against aggressive gases, dampness and dirt.
